Goldensign ACP/ACM/aluminum composite panel for building and advertising

Aluminum composite panel /ACP/ACM/aluminum composite panel

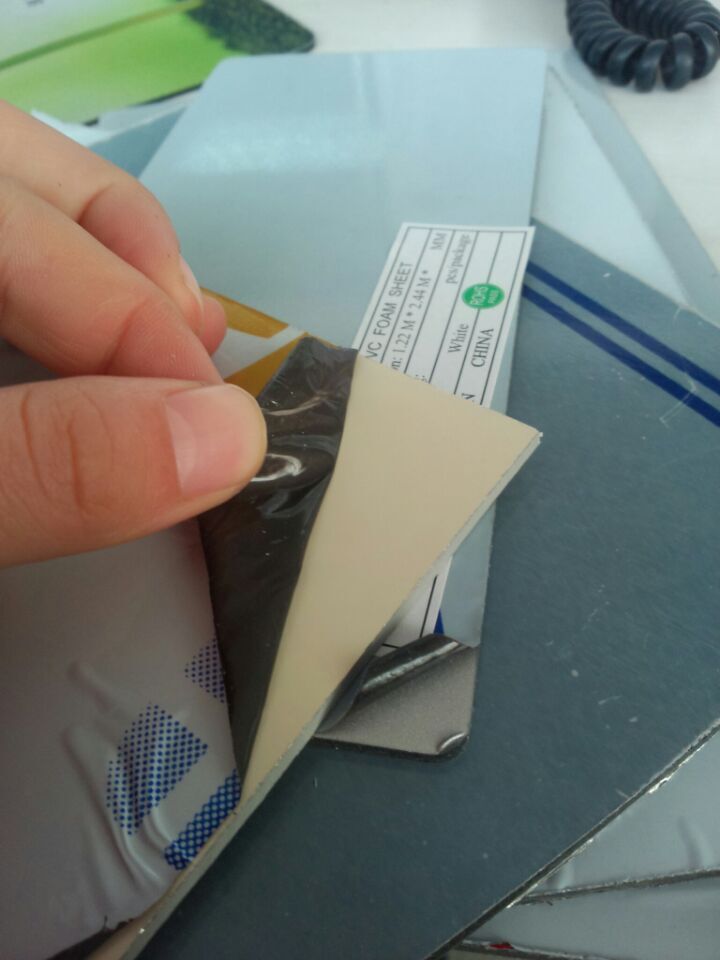

1)Material:

A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer

B) Core: nontox low density polyethylene

C) Back: aluminium alloy sheet coated with polyester resin painting

D) Surface coating thickness: 32μ±1μ

E) Aluminium alloy: 3003 H24

F) Sheet thickness: 0.3mm,0.4mm,0.5mm

2)Dimensions

A) Thickness: 3mm,4mm,6mm,8mm,10mm

B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)

C) Length: 2440mm,3050mm,3200mm( max:6000mm)

D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness

E) Standard size:1220*2440mm

F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm

G) Non-stanard size are available according to requirement

3)Standard:

A) West Europe standard ( Germany DIN Standard);

B) The EAST Europe standard ( Russian standard );

C) The commonweathlth standard (U.K BS Standard );

D) The North America ASTM standard;

4)Features:

A) Light weight,flat surface and high strength

B) Excellent heat insulation ,sound insulation,fire-resistance,acid-resistance,alkali-resistance,weatherproofness and non-resonance

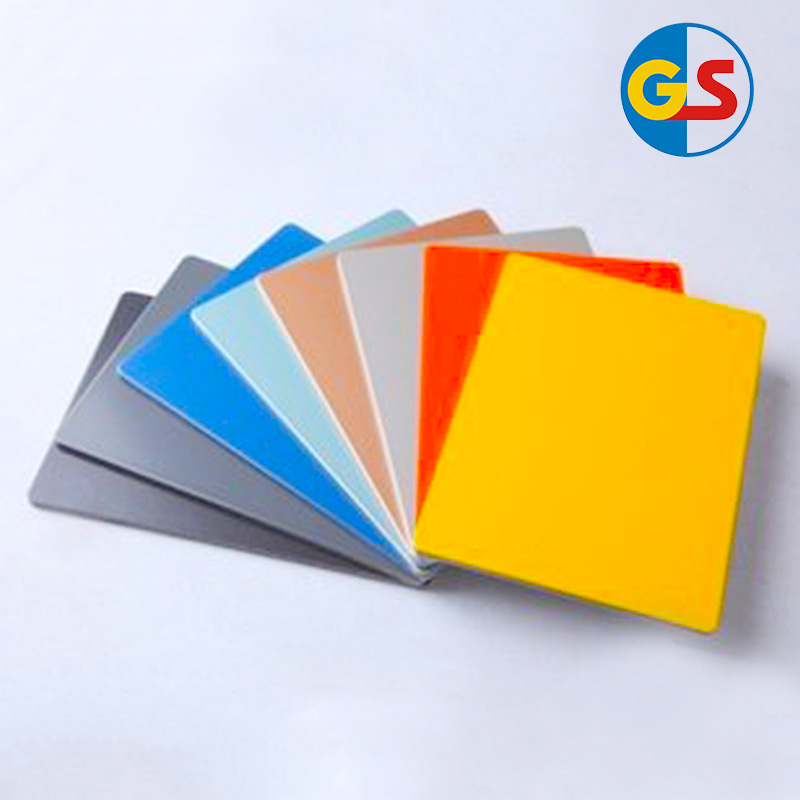

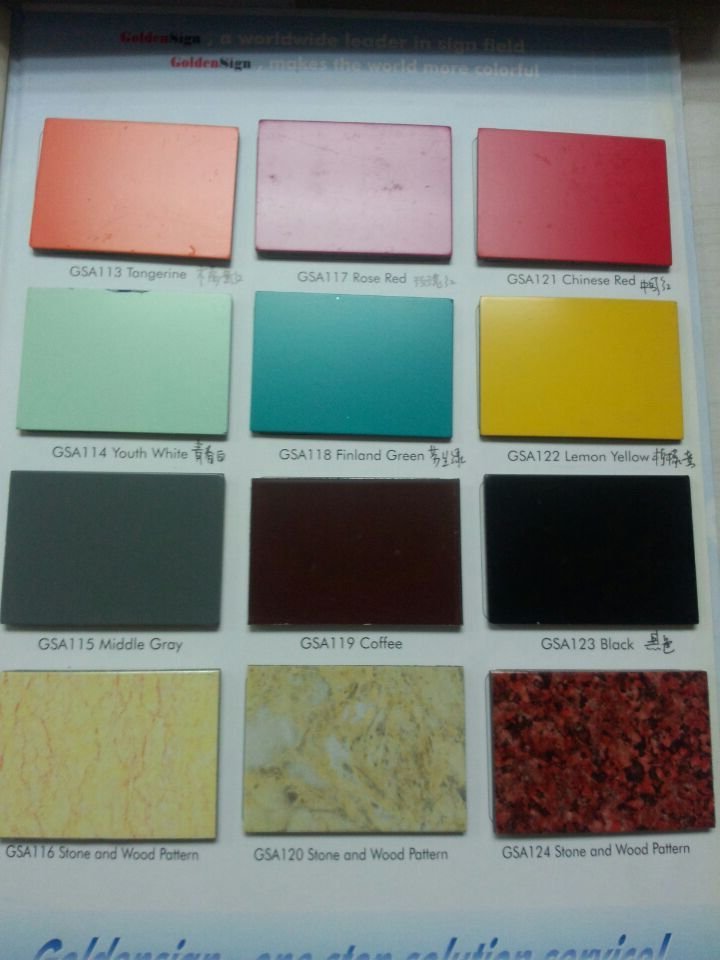

C) Various uniform colors

D) Rbright ,elegan and magnificent,fit for various designs

E) Kynar 500 PVDF resin feature strong chemical resistance,unique colors can be easily maintained

5)Applications:

  A) May be widly used in gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants and apartments

  B) An ideal decorative materials for buildings

  C) An ideal outer and inner walls

  D) Kitchen cabinees,billboards,signboards,tunnels,subway,interiors

  E) Cellings,eaves,galleries,balconies,partitions,interior decorations

  F) Telephone tooths,vehicle bodies,yachts,industrial usage etc.
